Exploring ALU, CU, Register Memory, Cache, and CPU Speed

The Central Processing Unit (CPU) stands at the heart of every modern computing device, executing instructions and performing calculations that drive the functionality we interact with daily. To comprehend the inner workings of a CPU, we need to delve into its key components: the Arithmetic Logic Unit (ALU), Control Unit (CU), Register Memory, Cache Memory, and CPU Speed.

What is a CPU?

The CPU, often referred to as the “brain” of a computer, is responsible for executing instructions from software programs. It performs essential tasks such as arithmetic operations, logical comparisons, data manipulation, and managing the flow of data within the system. The CPU interacts with other hardware components, such as memory and input and output devices, to ensure the seamless functioning of a computer.

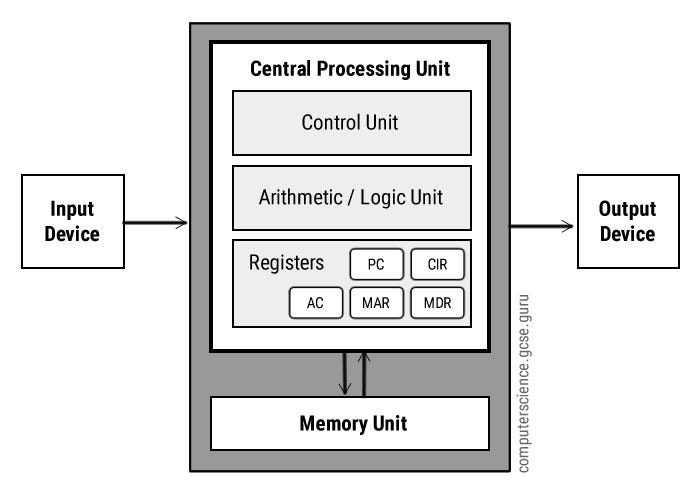

ALU, CU, and Register Memory

The CPU is divided into various components, each with a specific role. The Arithmetic Logic Unit (ALU) is the component responsible for carrying out arithmetic operations (addition, subtraction, multiplication, and division) and logical operations (AND, OR, NOT) on data. It performs calculations and generates results that are integral to various processes.

The Control Unit (CU) serves as the manager of the CPU’s activities. It interprets and coordinates instructions from the computer’s memory, ensuring that each operation is executed in the correct sequence. The CU manages the flow of data between different components of the CPU and other hardware components, ensuring that the computer operates according to the program’s instructions.

Register Memory Inside the CPU, register memory plays a crucial role in data storage and manipulation. Registers are small, high-speed storage locations that hold data temporarily during processing. They are used to store operands, intermediate results, and control information required by the ALU and CU. Registers allow the CPU to access and manipulate data quickly, contributing to the overall efficiency of the system

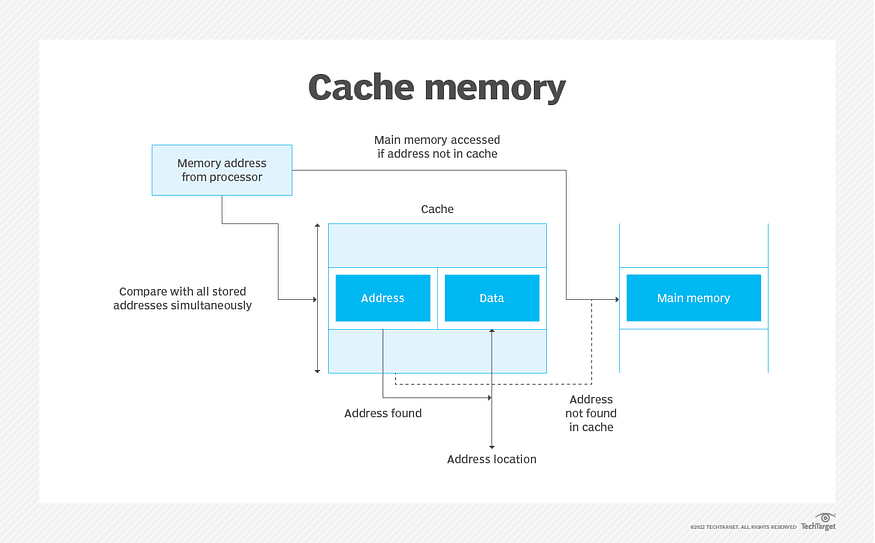

Cache Memory on CPU

Cache memory is a specialized type of high-speed, volatile computer memory that provides faster data storage and access compared to main memory (RAM). The cache is positioned directly on the CPU chip or in close proximity to it. It stores frequently used instructions and data to reduce the time the CPU spends waiting for data from the slower main memory. Cache memory comes in different levels (L1, L2, and L3) based on proximity to the CPU and capacity. The use of cache memory significantly enhances CPU performance and responsiveness.

CPU Speed

CPU speed, often measured in gigahertz (GHz), refers to the clock frequency at which a CPU can execute instructions. A higher clock speed generally indicates a faster CPU, as it can process more instructions per second. However, other factors like architectural design, number of cores, and cache size also influence overall performance. Over the years, advancements in technology have led to increased CPU speeds, allowing for faster computing and more complex tasks.
